EXTENSION JACKS AND LITTEL PLUGS
PHONE: 773 792-2700
256
PATCH CORDS & MOLDED CABLE ASSEMBLIES
?
* Please visit the product pages on our website for the most up-to-date product information
MOLDED CABLE ASSEMBLIES
WITH TINI-EXTENSION ? JACKS
SPECIFICATIONS
Housing (or Sleeve): Nickel-plated, copper alloy.
Handle: Molded plastic.
Sleeve Terminal: Plated steel.
Tip Spring: Copper alloy.
Insulation: Rigid plastic. Larger design also has a molded
thermoplastic insert.
Standard Colors: Gray white, black, brown. Other colors
available on special order.
CABLE
Standard Shielded: Type W-1032-1.
Standard Unshielded: Type W-1041-1.
NOTE: See Standard Cable Chart on page 260 for details.
Order by part number from guide on page 259.
MOLDED CABLE ASSEMBLIES
WITH LITTEL PLUG? PHONE PLUGS
SPECIFICATIONS
PLUG
Tip: Nickel-plated, copper alloy.
Sleeve: Plated copper alloy.
Insulation: Rigid plastic.
Internal Shield: Plated steel.
Molded Handle: Plastic.
Standard Colors: Gray, white, black and brown.
Other colors available on special order.
CABLE
FOR 2-CONDUCTOR PLUGS:
Standard Shielded Cable–Type W-1000-1.
Standard Parallel Cable (lamp cord)–Type W-1033-1.
FOR 3-CONDUCTOR PLUGS:
Standard Shielded Cable–Type W-1021-1.
NOTE: See Standard Cable Chart on page 260 for details.
Order by part number from guide on page 259.
Special Cable: We will build assemblies on cable furnished by
you, .188" (4.78 mm) diameter maximum, or on cable we
purchase to your specifications. Jacket must have a
temperature rating of 60°C minimum.
DESIGN FEATURES
? Molded cables with Littel-Plug phone plugs feature
one-piece tip rod assembly connecting tip directly
to the soldered connection of the cable conductor.
? Unusual dual-purpose clamp terminal provides completely
shielded electrical connection and a cable clamp; connects
plug sleeve to cable shield or conductor.
? Right-angle phone plugs (RA202, RA203, RA207 and
RA208) molded to cables up to .188" (4.78 mm) outside
diameter. RA202, RA203, RA207 and RA208 molded to
cables with maximum outside diameter up to .260" (6.6 mm).

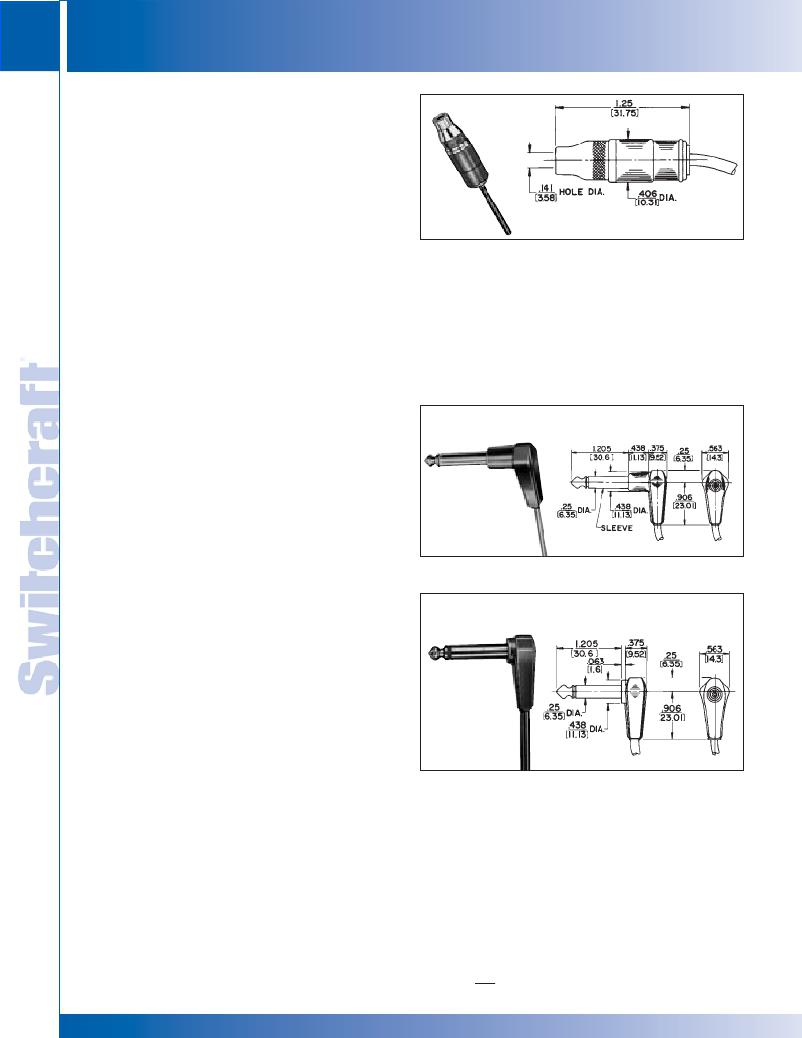

ST125
Termination Code: 83
Special Cable: We will build assemblies on cable furnished by
you, up to .160" (4.06 ram) outside diameter—or on cable we
purchase to your specifications. Jacket must have temperature
rating of 60° C minimum.
ST125: Straight Tini-Extension Jax jacks with same features
as ST121, on next page (shielded, 2-conductor), except with
.406" (10.31 mm) outside diameter, designed to mate with
Switchcraft Tini-Plug ? plugs.
RA200
Termination Code: 15
RA205
Termination Code: 13
RA200: Right-angle phone plug with plastic handle. Body
extension suitable for recessed jack. Completely shielded.
RA205: Right-angle phone plug, similar to RA200, except
short body extension and handle for flush mounted jacks.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
